Patternless Edger LEXCE Trend

Lens Edgers

Patternless Edger LEXCE Trend

Exceptional processing unit with integrated drill
Intelligent blocker with integrated imager
Precise tracing for all types of shapes
Selectable user interface designed for intuitive operation

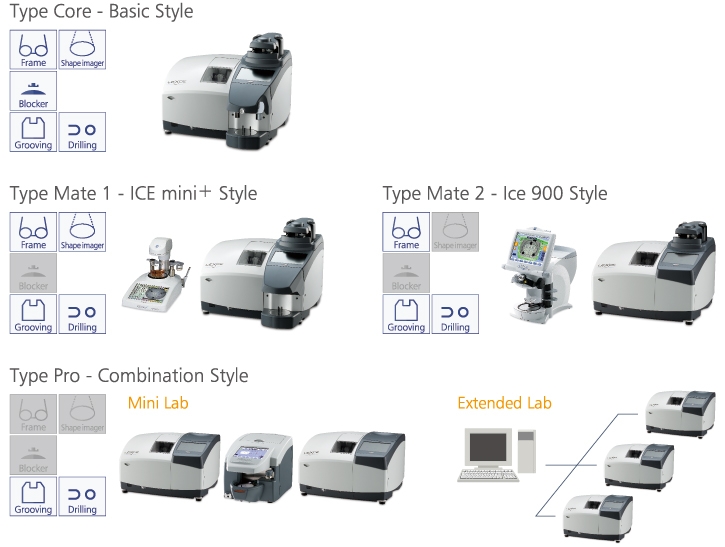

Multiple configurations

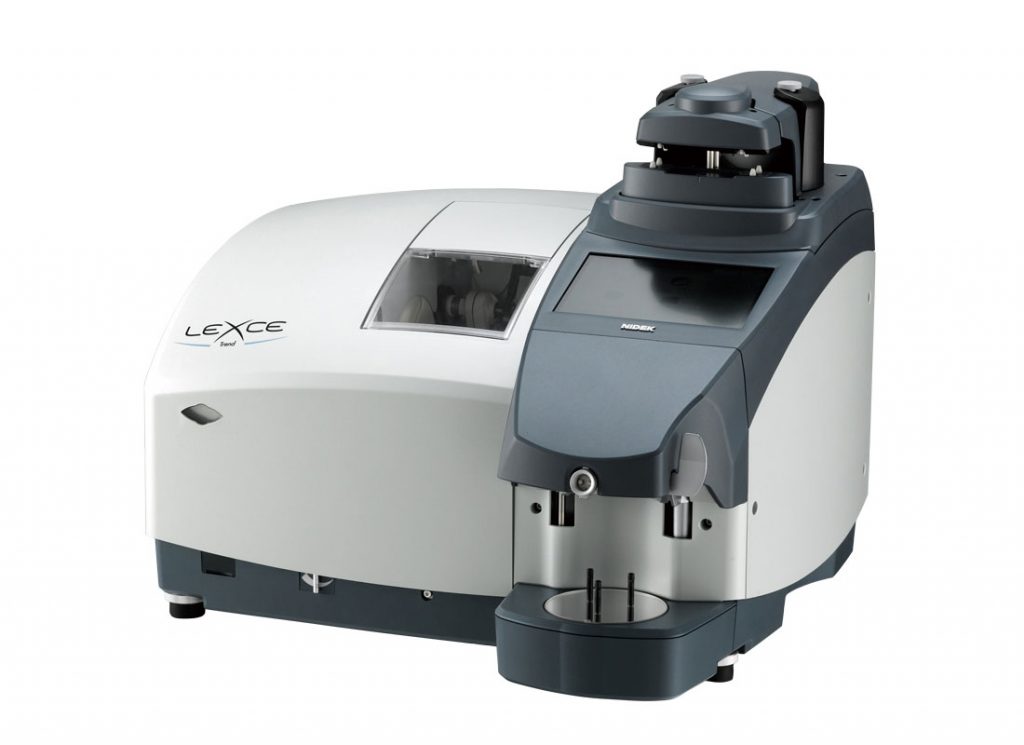

LEXCE_Trend_08_left_KLEXCE_Trend_08_left_K
LEXCE 4LEXCE 4

Product Information

Overview

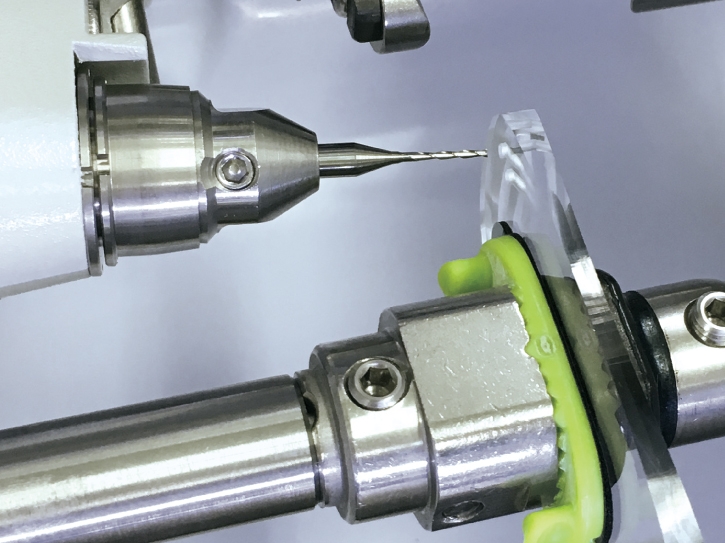

3-D drilling optimally controlled by 5-axis

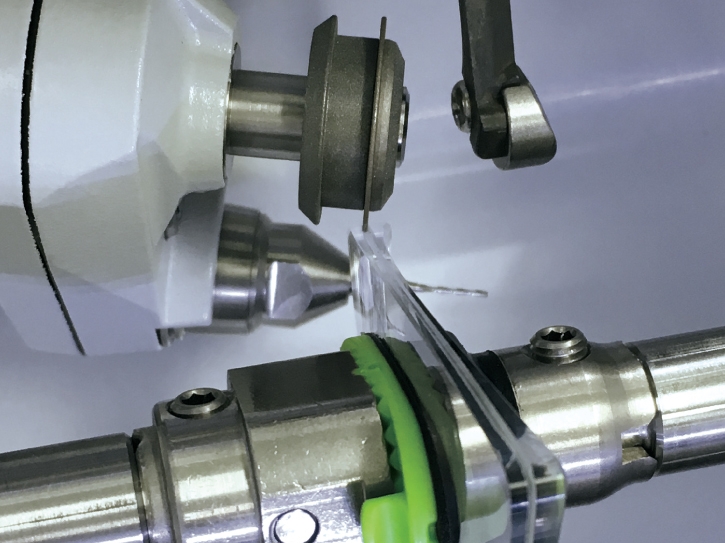

The drill unit uses a 5-axis mechanism, providing a high degree of accuracy for all your drilling jobs. The processing unit that runs the drill, also performs high quality safety beveling and grooving on any lenses.

Intelligent blocker with integrated imager

Highly accurate and precise blocking function Blocker unit is simple to operate while offering great performance. Magnification of the display facilitates viewing of lens markings during blocking.

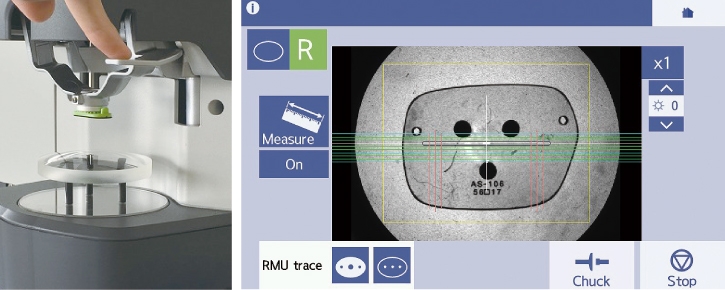

Automatic hole and shape data acquisition by imager (optical tracer)

The integrated imager can capture optical tracings, along with drill hole data. The data can be easily edited on the multifunction color screen. Precise tracing for all types of shapes The original NIDEK designed 3-D frame tracer, now equipped with a full auto clamping mechanism, performs highly precise measurements even on high curve frames. Additionally, two types of tracing methods (imager and Radius Measuring Unit) are available for tracing demo lenses and patterns with the LEXCE Trend Selectable user interface designed for intuitive operation Driven by two types of user interface; a step-by-step wizard mode for beginners and a professional mode for experts, it offers every user a comfortable operation with incredible ease. Multiple configurations Multiple configurations can be chosen from different model types depending on the situation of all optical shops and labs, either as a new integration or as an additional unit.
