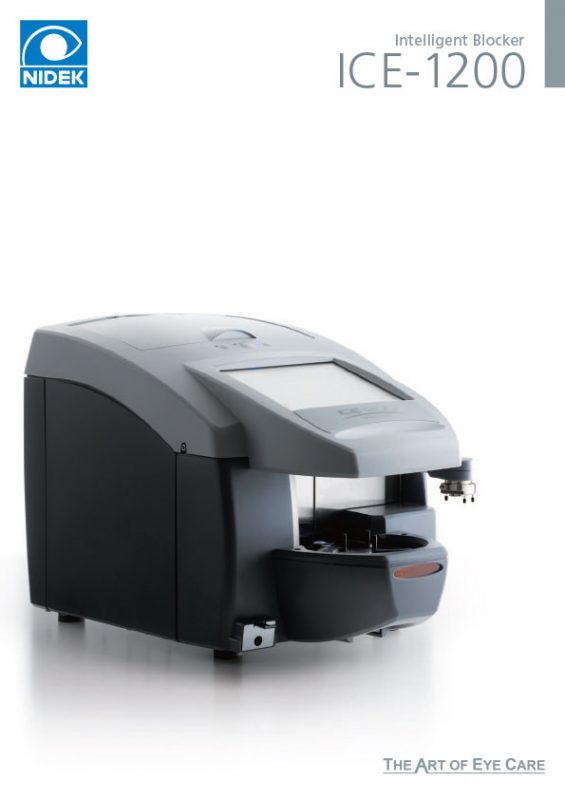

Four measurement methods can be selected depending on lens type. Simple lens stage supports smooth blocking operation.
Lens clamping with new mechanism
Newly designed lens clamp pins secure lens with optimal pressure and enable stable blocking. Multicolor LCD touch panel with high resolution 8.4-inch multicolor display shows lens shape and layout information in real scale. Functions are represented with simple icons for intuitive operation.
High-wrap curve frame tracer
Multiple-frame tracer provides accurate measurement of a wide array of frames including high-wrap style. Shape Imager measurement capture In addition to auto measurement of lens shape and hole position, measurement of partial step lens is also possible.
