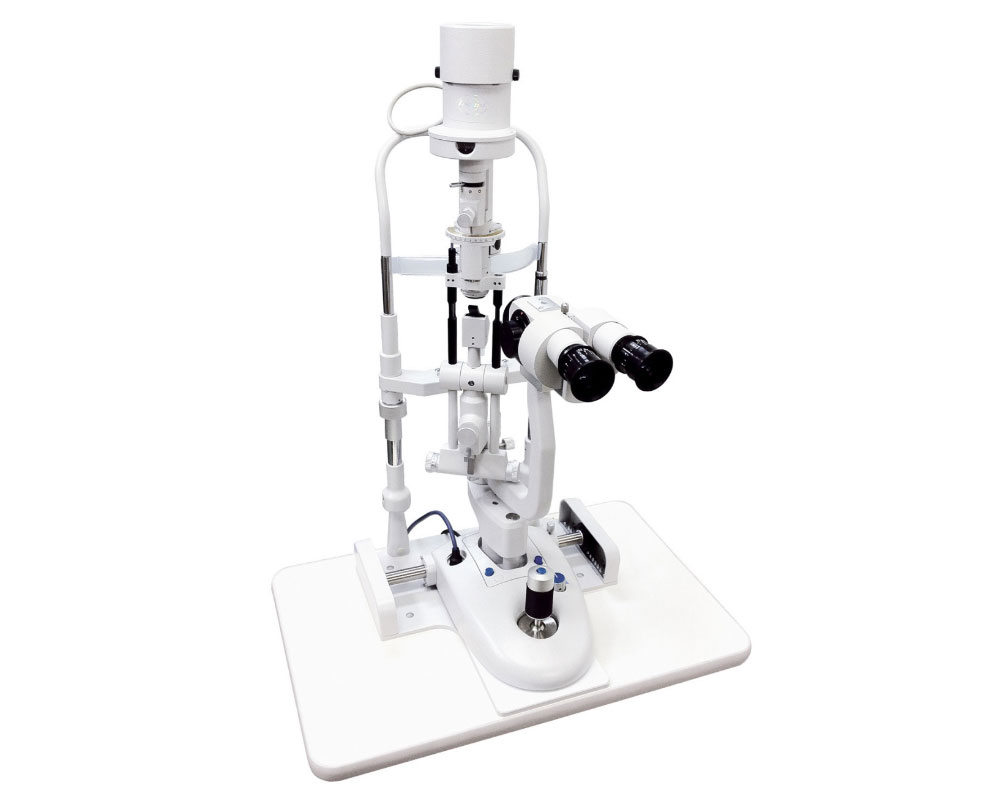

INAMI SLIT Lamp L-0240 Zoom Slit Lamp

SLIT LAMPS

INAMI SLIT Lamp L-0240 Zoom Slit Lamp

Microscope
Type Convergent Type
Binocular Microscope
Magnigication Changer Continuous Zoom by drum rotation
Stereo angle 12°
Eyepiece Standard 12.5x
Option –
Magnigication Ratio
(Field of View) Continuous from 10x~30x(22mm~8mm)
Pupilary Adjustment 48 – 78mm
Focus Distance 106mm
Diopter Adjustment +4 to -5 diopters

INAMI---LED-_-HALOGEN-SLIT-LAMPSINAMI---LED-_-HALOGEN-SLIT-LAMPS
INAMI---LED-_-HALOGEN-SLIT-LAMPSINAMI---LED-_-HALOGEN-SLIT-LAMPS

Product Information

Overview

Slit illminationSlit Width0 – 10mmaperture Diameter0.2,1,3,4,6,10mmSlit Length0 – 10mmSlit Rotation±90°FiltersStandard : Cobalt blue,Heat absorption,Red-free,1/2 ND,YellowOption : YF-57 adaptor built-in yellow filterSlit Inclination5° 10° 15° 20°Light Source: Choice of LED or Halogen
BaseVertical Movement30mmLongitudinal Movement70mmColour selectable baseSelectable
ChinrestVertical Movement75mmFixation TargetTungsten lamp bulb 6.3V 0.14A(L0150V2)Input VoltageAC100,120V,220V,240V,50/60HzPower Consumption65VAWeight & DimensionsWeight18.5KgsDimensions550(W)×400(D)×680(H) mm
